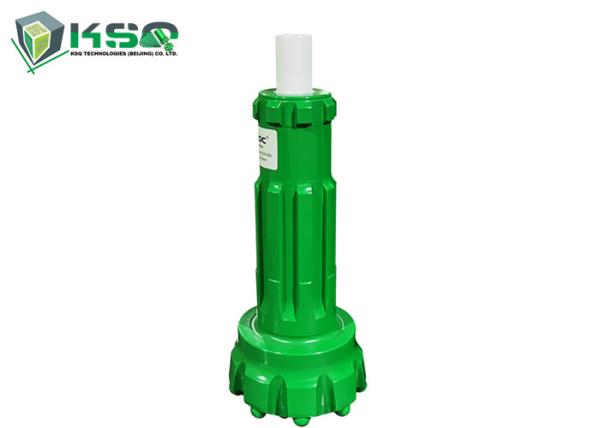

Dhd350 152mm Dth Drill Bits High Air Pressure For Rock Water Well

  • 1
  • 2
  • 3

Brand Name : MIROC

Model Number : DHD 350

Certification : ISO

Place of Origin : China

MOQ : 1

Price : negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union, MoneyGram

Supply Ability : 2000pcs per month

Delivery Time : 15-20days

Packaging Details : wooden box or carbon box

type : drill bit

Material : Carbon steel

Use : Well Drilling

Application : Coal Mining,Quarry drilling,DTH drilling

Diameter : 152mm

Machine type : Drilling Tool

Contact Now

Rock Drilling Eccentric Overburden Casing System Odex Drill DTH Button Bit

Description
In DTH drilling, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH drilling a nearly constant penetration rate regardless of hole length.

DTH bits are paired with their corresponding hammers (by drilling hole diameter and spline configuration). Customers can customize their DTH bits in various ways, such as changing the tungsten carbide insert profile (spherical, ballistic, etc.), face profile (flat face, concave, convex, etc.), and flushing holes.

• Medium to large size drilling diameters
• Works in high pressure range, capable of drilling deep hole lengths
• Color: Green,Blue or Based on Customer requirements


DHD350 High Air Pressure DTH Bit Specification:

DiameterButtons and Size (mm)Flushing holeWeightPart Number
mminchFrontGaugekg
DHD350 Ballistic button/Concave face
1305 1/84×14,3×148×162154148301310
1335 1/44×14,3×148×162154148301311
1405 1/24×14,4×148×162164148301312
1465 3/44×14,4×148×162184148301313
15264×16,4×168×182204148301314
DHD350 Spherical button/Concave face
1305 1/84×14,3×148×162154148301315
1335 1/44×14,3×148×162154148301316
1405 1/24×14,4×148×162164148301317
1465 3/44×14,4×148×162184148301318
15264×16,4×168×182204148301319
DHD350 Ballistic button/Convex face
1305 1/83×14,4×149×163154148301320
1335 1/43×14,4×149×163154148301321
1405 1/23×16,4×169×163164148301322
1465 3/43×16,4×169×163184148301323
15263×16,5×169×183204148301324
DHD350 Spherical button/Flat face
1305 1/87×148×162154148301325
1335 1/47×148×162154148301326
1405 1/27×147×182164148301327
1405 1/28×149×163164148301328
1465 3/48×149×163184148301329
15268×169×183204148301330
