3'' High Air Pressure DTH Bits For Bit Shank COP32 BR3 IR3.5 COP34 DTH Hammer
3'' High Air Pressure DTH Bits
DTH Button Bits for COP32, COP34, IR3.5, DHD3.5, BR3, QL30 Hammer.
3'' High Air Pressure DTH Button Bit Specification
| 3'' High Air Pressure DTH Bits |
| DTH Button Bit | Diameter | Buttons and Size (mm) | Flushing hole | Weight |
| mm | inch | Gauge | Front | kg |
| COP32 | 85 | 3 1/3 | 6x13 | 4x12 | 2 | 4.2 |
| 90 | 3 5/9 | 6x14 | 4x12 | 2 | 4.5 |
| 95 | 3 3/4 | 6x14 | 5x12 | 2 | 4.7 |
| 100 | 3 8/9 | 8x12 | 6x12 | 2 | 5.0 |
| 105 | 4 1/8 | 8x13 | 6x12 | 2 | 5.3 |
| BR3 | 85 | 3 1/3 | 6x13 | 4x12 | 2 | 4.2 |
| 90 | 3 5/9 | 6x14 | 4x12 | 2 | 4.5 |
| 95 | 3 3/4 | 6x14 | 5x12 | 2 | 4.7 |
| 100 | 3 8/9 | 6x14 | 6x12 | 2 | 5.0 |
| 105 | 4 1/8 | 8x13 | 6x12 | 2 | 5.3 |
| IR3.5/COP34 | 85 | 3 1/3 | 6x13 | 4x12 | 2 | 4.2 |
| 90 | 3 5/9 | 6x14 | 4x12 | 2 | 4.5 |
| 95 | 3 3/4 | 6x14 | 5x12 | 2 | 4.7 |
| 100 | 3 8/9 | 6x14 | 6x12 | 2 | 5.0 |
| 105 | 4 1/8 | 8x13 | 6x12 | 2 | 5.3 |
| QL30 | 85 | 3 1/3 | 6x13 | 4x12 | 2 | 4.2 |
| 90 | 3 5/9 | 6x14 | 4x12 | 2 | 4.5 |
| 95 | 3 3/4 | 6x14 | 5x12 | 2 | 4.7 |
| 100 | 3 8/9 | 8x13 | 6x12 | 2 | 5.0 |
| 105 | 4 1/8 | 8x13 | 6x12 | 2 | 5.5 |

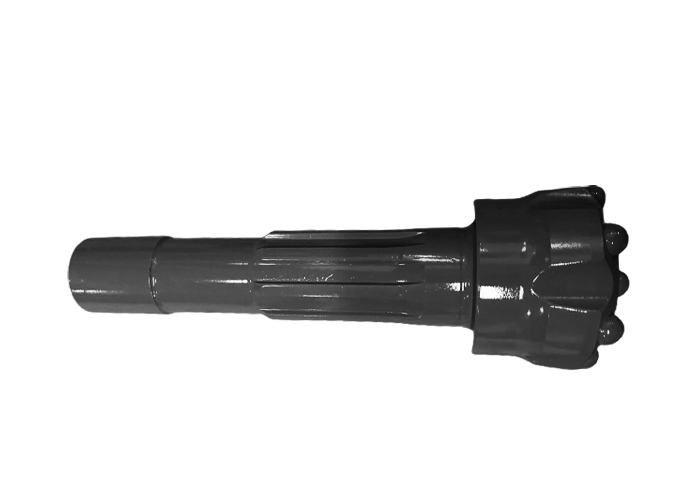

COP32 - 90mm DTH Button Bit Photo:
Product: DTH Button Bit
Diameter: 90mm
Bit Shank: COP32
Face Design: Flat Face
Button/Carbide Type: Ballistic
Button Number and Diameter: 6x10mm front, 8x11mm gauge
Flushing Holes: 2 front flushing holes
Color: Black
Bit Face Shape Selection:
Center Drop Bit:
For high penetration rates in soft to medium hard and fissured rock formations. Low to medium air pressure.
Maximum hole deviation control.
Concave Face
The all-around application bit face specifically for medium hard and homogenerous rock formations.
Good hole deviation control and good flushing capacity.
Convex Face
For high penetration rates in soft to medium-hard with low to medium air pressure. It is the most resistance to steel wash, any may reduce the load and wear on gauge buttons, but poor hole deviation control.
Double Gauge Face
This kind of face shape is suitable for fast penetration rates in medium to hard rock formations. Designed for high air pressure and good resistance to steel wash step gauge bit.
Flat Face Bit
This kind of face shape is suitable for hard to very hard and abrasive rock formation is applications with high air pressure. Good penetration rates and resistance to steel wash.
Competitive Advantage
• High-grade tungsten carbide inserts
• Bit bodies manufactured from high-grade steel and processed using state-of-the-art CNC machinery and heat treatment
We can design and manufacture the personalized products to meet your special applications, such as changing the tungsten carbide insert profile (spherical, ballistic, etc.), face profile (flat face, concave, convex, etc.), and flushing holes.
Applications
• Underground mining
• Down the hole rock drilling
KSQ Related DTH Button Bits
| Product | DTH Button Bits |
| Low Air Pressure | CIR80, CIR90 |
| 3’’ | DHD3.5, M30, |
| 4’’ | DHD340, SD4,QL40, M40 |
| 5’’ | DHD350, SD5,QL50, M50 |
| 6’’ | DHD360, SD6,QL60, M60 |
| 8’’ | DHD380, SD8,QL80, M80 |
| Color | Green, Gold, Black or based on customer requirements. |
| MOQ: | No MOQ required for testing and trial order |
Keywords
DTH BIT, DTH Button Bit, Down The Hole Button Bit, Rock Bit, Rock Drill Bit,
Low Air Pressure DTH Button Bit, High Air Pressure DTH Button Bit
In DTH drilling, the rock drilling bit is a continuation of the shank, which the rock drill piston strikes directly. Since the piston is in direct contact with the drill bit, little energy is lost. This gives DTH drilling a nearly constant penetration rate regardless of hole length.
Product Tags:
|
|

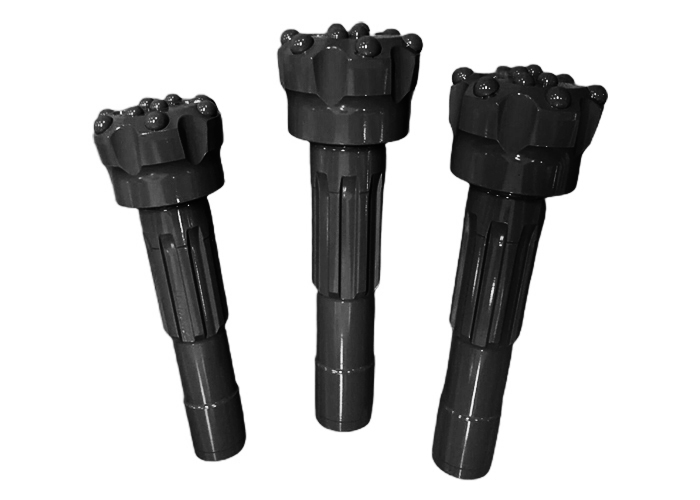

Black DTH Drill Bits For Bit Shank COP32 BR3 IR3.5 COP34 Rock Drilling Hammer Images
|
