R25 Hex Flushing Hole 610mm Threaded Drill Rod

  • 1
  • 2
  • 3

Brand Name : MIROC

Model Number : R25

Certification : ISO

Place of Origin : CHINA

MOQ : 1

Supply Ability : 20000 pieces per month

Delivery Time : 10-15 Days

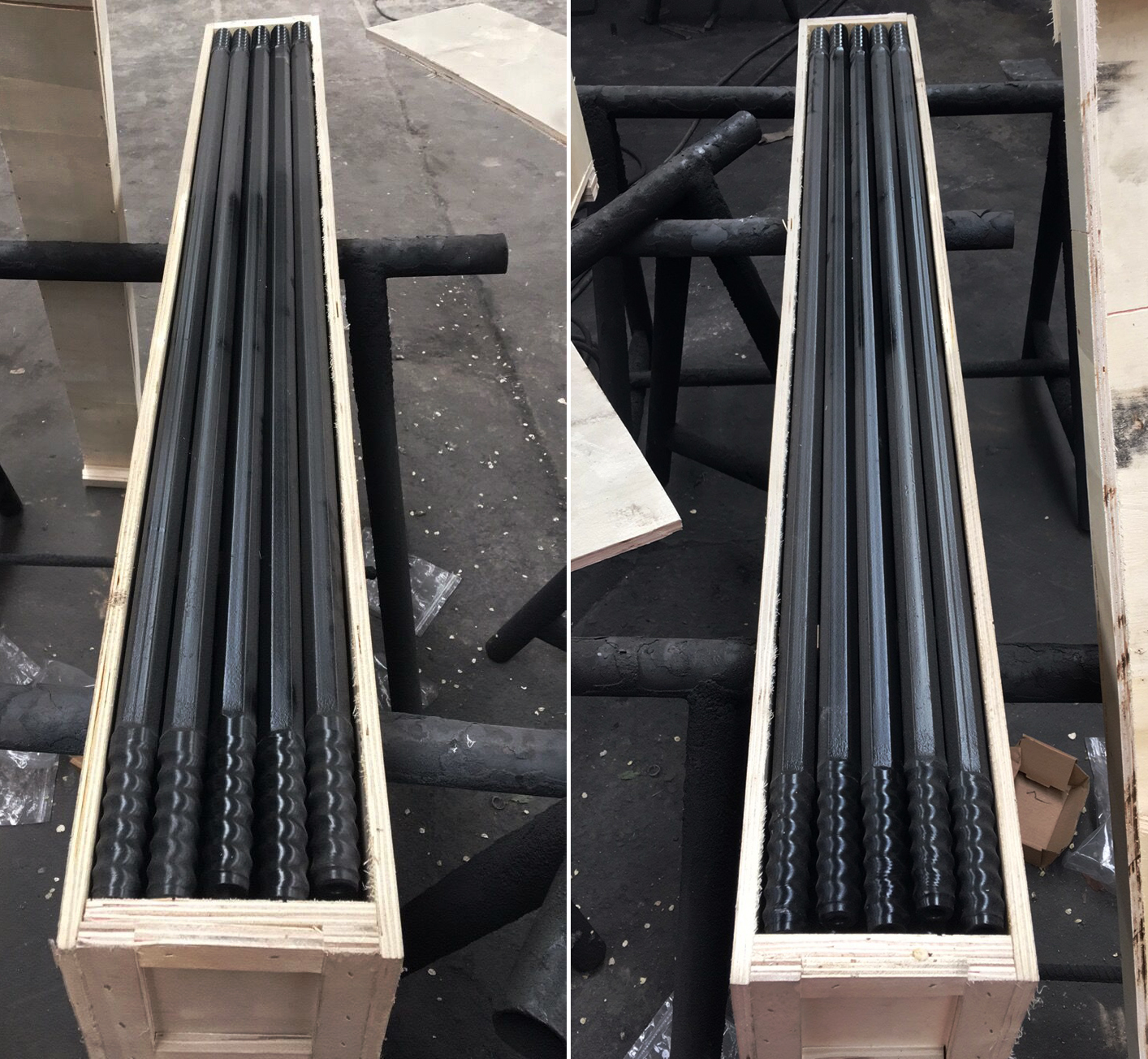

Packaging Details : Wooden Box

Product Name : threaded pipe

Machine Type : Drilling Tool

Material : Carbon Steel, Carbon Steel

Use : Ore Mining, Metal Drilling

Color : Green,Blue,Orange,etc

Thread : H25 R25 R28 R38 T38 T45 T51

Length : 610-3600mm

Processing : CNC milling and proprietary heat treatment process

Contact Now

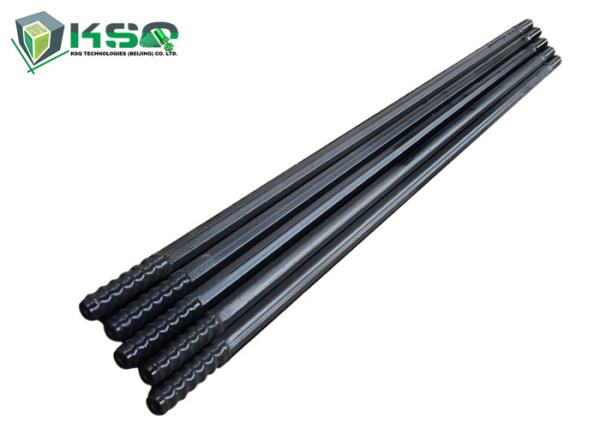

R25 Hex Flushing Hole 610mm Thread Drill Rod

Drill rod using R25 thread system. Suited for short hole drilling operations. For drills capable of receiving Hex 22x108mm and Hex 25x159mm shank. Used in drifting and tunneling.

Widely used in drifting, tunneling, benching, and long hole drilling

Material: Tungsten carbide and high strength alloy steel

Processing: CNC milling and proprietary heat treatment process

Our factory can offer many kinds of drill bits, including chisel type bits, cross type bits, tapered drill rods and integral drill rods, mainly used for mining, coal cutting, tunneling, rock cutting in quarrying.

Specification

Part Number Product Code and Brief Description

Length

(mm)

Length

(ft/inch)

Diameter

(mm)

Diameter

(inch)

Weight

(kg)

4148300419

DRH22-R25-610, R25 Shank End Rod,

Shank 22 mm x 108 mm

610 2 22 6/7 2.6
4148300420

DRH22-R25-760, R25 Shank End Rod,

Shank 22 mm x 108 mm

760 2 1/2 22 6/7 2.9
4148300421

DRH22-R25-1000, R25 Shank End Rod,

Shank 22 mm x 108 mm

1000 3 2/7 22 6/7 3.7
4148300422

DRH22-R25-1200, R25 Shank End Rod,

Shank 22 mm x 108 mm

1220 4 22 6/7 4.4
4148300423

DRH22-R25-1830, R25 Shank End Rod,

Shank 22 mm x 108 mm

1830 6 22 6/7 6.3
4148300424

DRH22-R25-2435, R25 Shank End Rod,

Shank 22 mm x 108 mm

2435 8 22 6/7 8.1
4148300425

DRH22-R25-3200, R25 Shank End Rod,

Shank 22 mm x 108 mm

3200 10 1/2 22 6/7 10.6
4148300426

DRH22-R25-3600, R25 Shank End Rod,

Shank 22 mm x 108 mm

3600 11 4/5 22 6/7 12.0

R25 Hex Flushing Hole 610mm Threaded Drill Rod

R25 Hex Flushing Hole 610mm Threaded Drill Rod
