Guide Diameter 80- 445mm DTH Hole Opener For Water Conservancy

  • 1
  • 2
  • 3

Brand Name : MIROC

Model Number : DTH Hole Opener

Certification : ISO9001

Place of Origin : Shangdong,China

MOQ : 5 Pieces

Price : negotiation

Payment Terms : T/T, L/C, D/A, D/P, Western Union, MoneyGram

Supply Ability : 20000pcs per month

Delivery Time : 10-25days

Packaging Details : Wooden Plate

Material : Tungsten Carbide

Color : Green, Black and Demaned By Customer

Use : Underground Mining

Reamed dia : 130-660mm

Guide Diameter : 80- 445mm

Product name : DTH Hole Opener

Application : tunneling,piling,water well,blasting,quarrying,concrete drilling

Contact Now

Guide Diameter 80- 445mm DTH Hole Opener For Water Conservancy

Product Description

Hole opener bits are designed specifically for this purpose, which is an effective way of enlarging holes, hence the bits named as "Hole Opener". A common practice involves drilling a relatively small pilot hole at first stage, and second and final stage then further widening it with a hole opener bits, since this can result in a straighter hole and require less powerful machinery. And different stages can be set per drilling specifications to maximize cutting breaking and removal, and rig capabilities. Besides, rotation torque, the DTH hole opener involves a concussive force that repeatedly impact a drilling head to the rock or other substrate. The impacting action can pulverize rock and also force it back and up, helping to clear out the borehole. So, in addition to widening a bore hole, a hole opener can also clean excess material out of it.

Applications

It is mainly used in geological exploration, coal mine, water conservancy and hydropower, highway, railway, bridge, construction and so on.

Technical parameter

Carbide Hole Opener Bit For water well Drilling Specifications

Reamed Dia(mm)

 165 178 190 216 254 305 305 381 381 445 482 600

Guide Dia(mm)

 82 99 115 138 159 208 208 296 296 305 311 445
Gauge Button 16 16 18 18 18 18 20 20 20 20 22 22
Front Button 14 14 15 15 16 16 18 18 18 18 19 19
Shank Bit

DHD340A QL40,SD4 ,Mission 40

DHD350,QL50,
SD5,Mission50

DHD360,QL60,SD6 , Mission60

DHD380 , QL80 . SD8 , Mission80

SD10 . Numa10

DHD112 , SD12 . Numa120

We can design and manufacture according to customers' requirement of the bit diameter, and the size of the hole opener.

How to order

Guide diameter+Reamed Diameter+Shank Type

KSQ Supply has a large variety of Hole Openers on the shelf, and if we don't have what you're looking for we can have one custom-made to your specific application.

Please contact us for your specific needs, and we will make it happen.

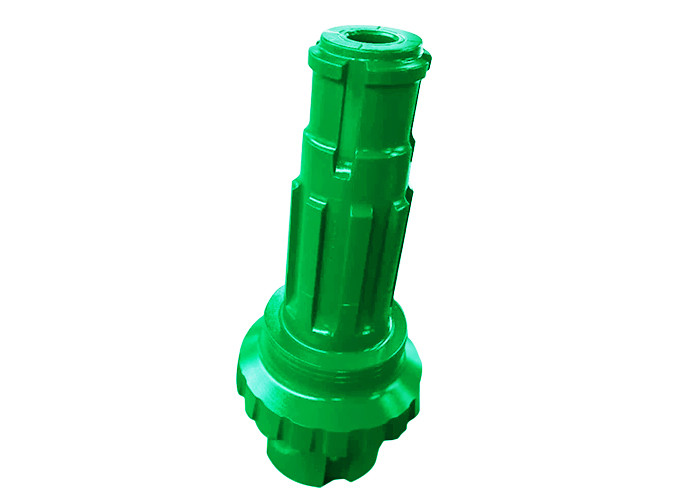

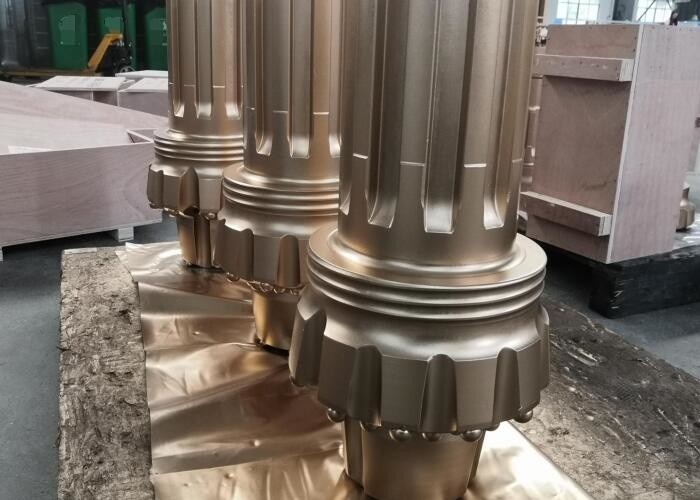

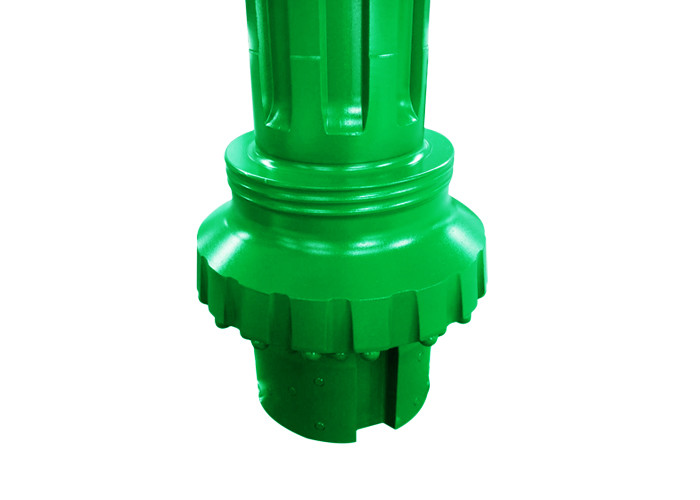

Pictures:

Guide Diameter 80- 445mm DTH Hole Opener For Water ConservancyGuide Diameter 80- 445mm DTH Hole Opener For Water Conservancy

Guide Diameter 80- 445mm DTH Hole Opener For Water Conservancy
