COP 32 BR 3 COP 34 IR 3.5 High Air Pressure DTH Drill Bits
 |
Concave Face |
| Ballistic Button |
 |
Concave Face |
| Spherical Button |
 | Convex Face |
| Ballistic Button |
 | Flat Face |
| Spherical Button |
| Face: | Flat Face, Concave Face, Convex Face |
| Tungsten Carbide: | Ballistic Buttons, or Spherical Buttons |
| Color: | Green or Based on Customer requirements |
| 3'' High Air Pressure DTH Bits |
| DTH Button Bit | Diameter | Buttons and Size (mm) | Flushing hole | Weight |
| mm | inch | Gauge | Front | kg |
| COP32 | 85 | 3 1/3 | 6x13 | 4x12 | 2 | 4.2 |
| 90 | 3 5/9 | 6x14 | 4x12 | 2 | 4.5 |
| 95 | 3 3/4 | 6x14 | 5x12 | 2 | 4.7 |
| 100 | 3 8/9 | 8x12 | 6x12 | 2 | 5.0 |
| 105 | 4 1/8 | 8x13 | 6x12 | 2 | 5.3 |
| BR3 | 85 | 3 1/3 | 6x13 | 4x12 | 2 | 4.2 |
| 90 | 3 5/9 | 6x14 | 4x12 | 2 | 4.5 |
| 95 | 3 3/4 | 6x14 | 5x12 | 2 | 4.7 |
| 100 | 3 8/9 | 6x14 | 6x12 | 2 | 5.0 |
| 105 | 4 1/8 | 8x13 | 6x12 | 2 | 5.3 |
| IR3.5/COP34 | 85 | 3 1/3 | 6x13 | 4x12 | 2 | 4.2 |
| 90 | 3 5/9 | 6x14 | 4x12 | 2 | 4.5 |
| 95 | 3 3/4 | 6x14 | 5x12 | 2 | 4.7 |
| 100 | 3 8/9 | 6x14 | 6x12 | 2 | 5.0 |
| 105 | 4 1/8 | 8x13 | 6x12 | 2 | 5.3 |
| COP34 | 85 | 3 1/3 | 6x13 | 4x12 | 2 | 4.2 |
| 90 | 3 5/9 | 6x14 | 4x12 | 2 | 4.5 |
| 95 | 3 3/4 | 6x14 | 5x12 | 2 | 4.7 |
| 100 | 3 8/9 | 8x13 | 6x12 | 2 | 5.0 |
| 105 | 4 1/8 | 8x13 | 6x12 | 2 | 5.5 |
| We can design and manufacture according to customer's requirements of the bit diameter, the carbide buttons(spherical, ballistic) and the face shape(flat, convex, concave) and the no. of flushing holes. |
DTH Drill Bits/DTH hammer bits/DTH биты молоток/DTH martilyo bits/DTH บิตค้อน/DTH martillo de bits/สว่านเจาะลึก DTH/Brocas DTH
Features and Advantages:
We take pride in being the only manufacturers in China that has a diverse line of DTH bits that range from 3"-47"(76mm~1200mm) in diameter with most the leading hammer shanks.

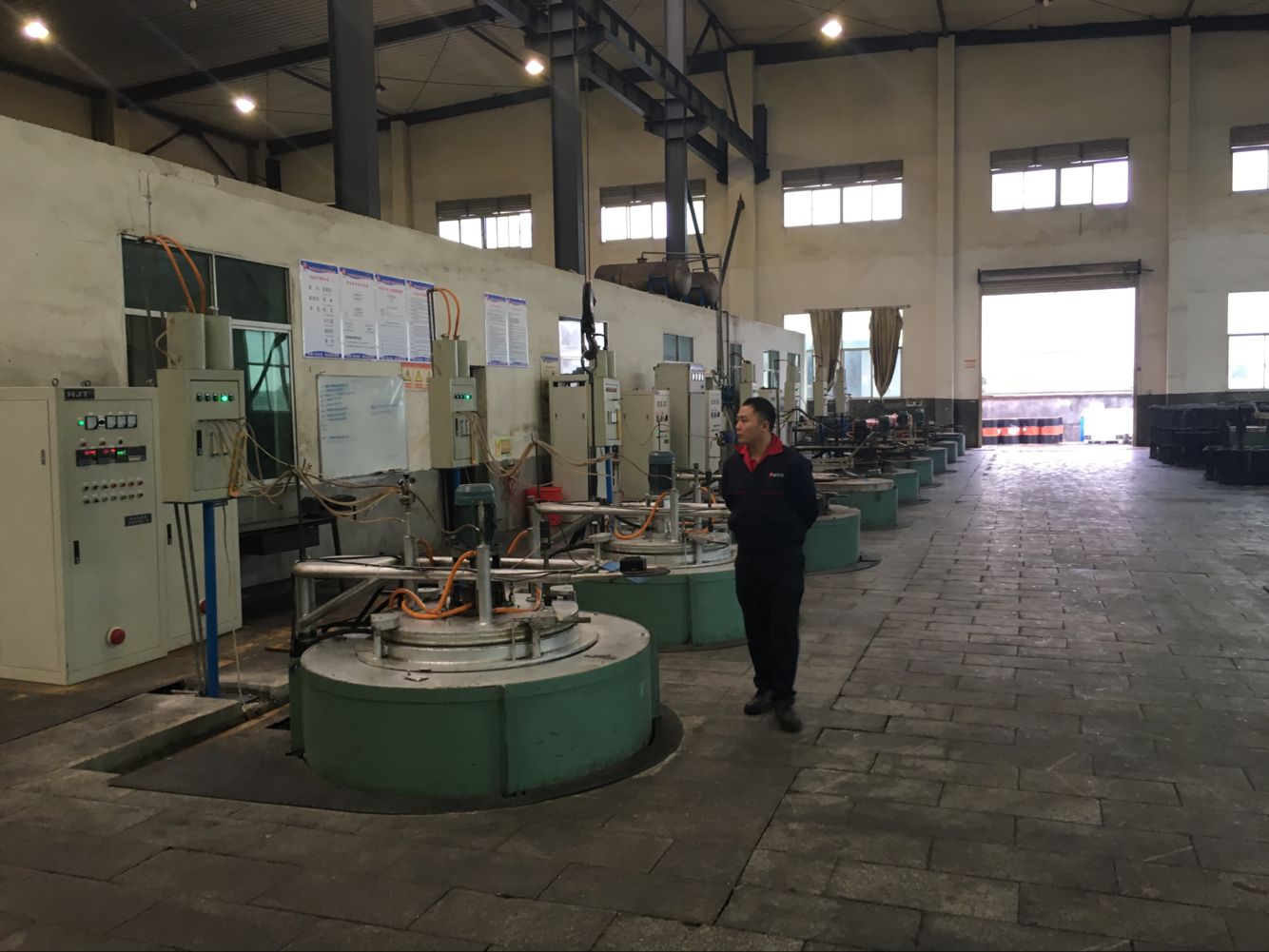

Made from high quality alloy steel and advanced heat-treatment, our bits are ensured extreme protection against wear and fatigue. They're also available in four different bit-head designs - Convex, Flat, Concave and Drop center face, and four different inserts-Spherical,Ballistic,Semi-ballistic,Two-Step to tackle any challenge and rock formations.
Quality Control
KSQ believe in the management philosophy that : Quality is the market”. So all our products are strictly comply with the request of international quality management system, thus they keep tracking and monitoring the IQC, IPQC and OQC all the way. Our factory with professional testing personnel, and equipped with sophisticated detection equipment, adopts the international advanced detetion means and method, product technical conditions to conduct a comprehensive, strict inspection.
KSQ never stops to perfect the management team for quality inspection, and find a strict security system for all rules. So that we can standaridze and limit the workers quality action, and constructiong KSQ quaity culture, forming the atmoshphere of quality control.

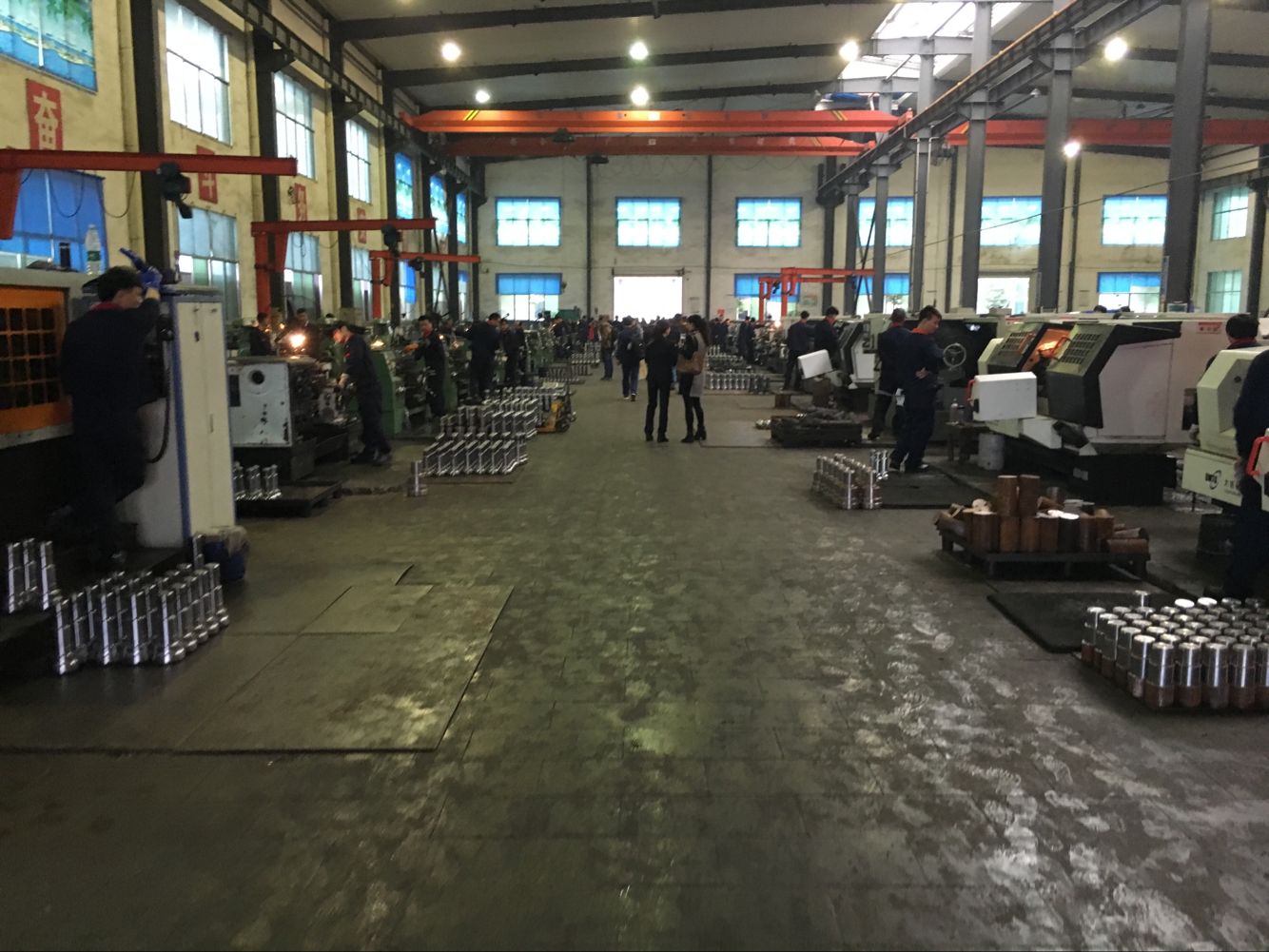

We commiteed to improving and reforming technology, so we spend a lot of money , bringing in many advanced eqipments, our pursuit is to ensure and improve our products be quality, which determines that we have to keep improving the tech ability of our company.
