Brand Name : MIROC
Model Number : DTH Bits
Certification : SGS certified
Place of Origin : China
MOQ : 1pcs
Price : negotiation
Payment Terms : T/T, L/C, D/A, D/P, Western Union
Supply Ability : 20000pcs per month
Delivery Time : 15-20days
Packaging Details : wooden box
Color : Green/Yellow
Application : Water well drilling
Shank : QL60 DHD360 SD6 M60 Shank
Advantage : high quality and factory price
Condition : New products

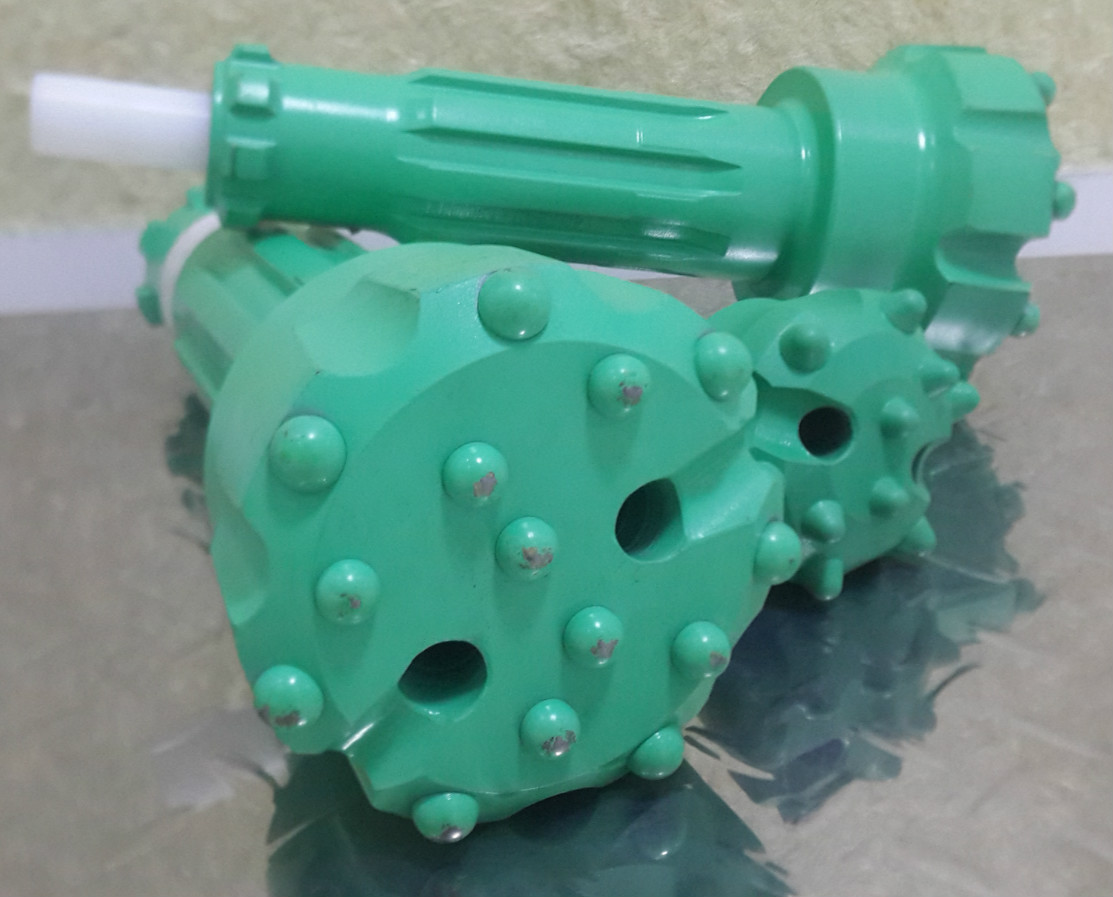

Hammer carbide button bit 152mm 155mm 159mm 165mm 172mm 178mm 190mm 203mm
Good Quality 6 inch DTH Drill Bit
Shank Type: | DHD360, COP64, SD6, QL60, M60 DTH Hammer Bit |
Bit Dia.: | 152mm,155mm,159mm,165mm,172mm,178mm,190mm,203mm |
Face: | Flat Face, Concave Face, Convex Face |
Tungsten Carbide: | Ballistic Buttons, or Spherical Buttons |
Color: | Green or Based on Customer requirements |
Type | Application |
Flat Face | Very hard and abrasive rock formation. |
Concave Face | All kinds of rock formation, especially for medium-hard and homogeneous formation.
|
Convex Face | Soft to medium-hard
|
Drop Center Bit | Soft to medium-hard and fissured rock formation
|
Carbide Button Shape Selection: Spherical Semi-ballistic ballistic Conical button
|
Description:
1. Deliver maximum energy to drilling bit, fast drilling speed and low air consumption due to the special inner structure of HD series DTH hammer designed according to newest rock drilling theory.
2. Smooth performance and long service life of HD series DTH hammer due to high quality alloy steel materials and advanced processing technology adapted.
3. Low problem rate and easy to maintenance due to simple , reliable and easy assemble and disassemble inner structure of hammer.
4. Easy to depart bit from hammer due to multihead thread connecting chuck and cylinder of hammer.
5. Interchangeable with DTH bit and drill pipe
Low pressure and high pressure hammers are available in our company
DTH hammer bits/DTH биты молоток/DTH martilyo bits/DTH บิตค้อน/DTH martillo de bits
![]() |
Water Well Drill Bits Air Drill Hammers And Bits 4inch, 5inch, 6inch Dth Hammer Button Bit 152mm 165mm 203mm Images |
