Water well drilling 140mm 152mm 165mm High air pressure DTH Drill Bits

Product Categories
KSQ Technologies (Beijing) Co. Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Water well drilling 140mm 152mm 165mm High air pressure DTH Drill Bits

  • 1
  • 2
  • 3

Brand Name : MIROC

Model Number : DTH Bits

Certification : SGS certified

Place of Origin : China

MOQ : 1pcs

Price : negotiation

Payment Terms : T/T, L/C, D/A, D/P, Western Union

Supply Ability : 20000pcs per month

Delivery Time : 15-20days

Packaging Details : wooden box

Color : Green/Yellow

Application : Water well drilling

Shank : High air pressure

Suitable brands : Atlas Copco/ etc..

Low air pressure hole diameter : 65-220mm

High air pressure hole diameter : 85-305mm

Face type : Flat Face, Concave Face, Convex Face

Contact Now

Water well drilling 140mm 152mm 165mm High air pressure DTH Drill Bits

Products features:

1.high and low air pressure down-the-hole drill bits

2.Low air pressure hole Dia.:65-220mm

3.High air pressure hole Dia.:85-305mm

4.Face type:drop center/concave/convex/double gauge/flat

5.Our DTH Bit can be suitable for Original Atlas Copco /Sandivk big brands' DTH Hammers, such as XL, Mission, COP, IR, Mach, Demag, SD, Bulroc, Halco Mach, Digger etc.

Good Quality DTH Drill Bit

Face design: Flat Face, Concave Face, Convex Face
Tungsten Carbide: Ballistic Buttons, or Spherical Buttons
Color: Green or Based on Customer requirements

Water well drilling 140mm 152mm 165mm High air pressure DTH Drill Bits Ballistic Concave Face
Charracteristics:

1. Straight hole application
2. Fast penetraction
3. Suited for soft to medium rock
4. Non-abrasive drilling conditions		 Water well drilling 140mm 152mm 165mm High air pressure DTH Drill Bits Ballistic Convex Face
Charracteristics:

1. Fast penetraction
2. Suited for soft rock
3. Non-abrasive drilling conditions
Water well drilling 140mm 152mm 165mm High air pressure DTH Drill Bits Spherical Concave Face
Charracteristics:

1. Straight hole application
2. Good wear resistance
3. Suited for medium to hard rock
4. Abrasive drilling conditions		 Water well drilling 140mm 152mm 165mm High air pressure DTH Drill Bits Spherical FlatFace
Charracteristics:

1. Good wear resistance
3. Suited for hard rock
4. Abrasive drilling conditions

2.5" DTH BIT D=76mm CWG76
80mm
3.5" DTH BIT D=90mm
95mm DHD3.5
100mm
105mm
4" DTH BIT D=105mm
108mm DHD340A
115mm Mission40
120mm COP44
125mm
130mm
D=105mm TD40
108mm
115mm
120mm
125mm
130mm
5" DTH BIT D=133mm DHD350R
140mm COP54
148mm QL50
152mm Mission50
6" DTH BIT D=152mm
155mm
165mm
171mm Mission60
178mm QL60
190mm
203mm
219mm
254mm
8" DTH BIT D=194mm
200mm
203mm
216mm
219mm DHD380
222mm COP84
235mm QL80
254mm Mission80
270mm
305mm
311mm
325mm
350mm

DTH hammer bits/DTH биты молоток/DTH martilyo bits/DTH บิตค้อน/DTH martillo de bits

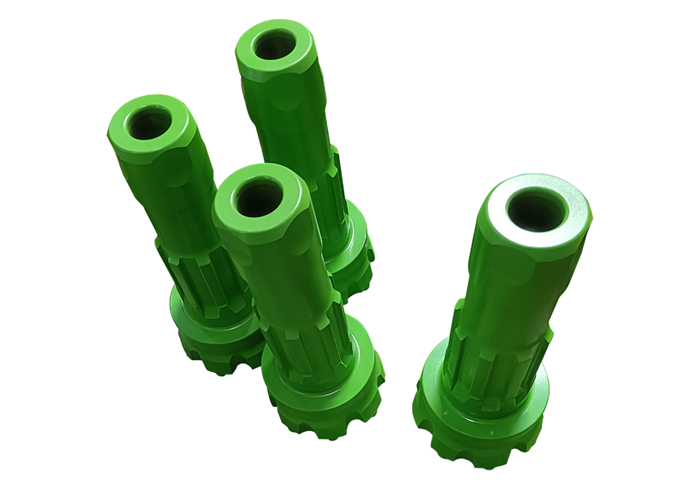

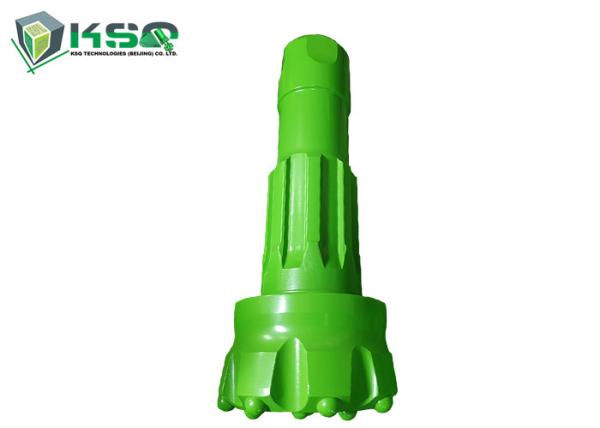

Products Pictures:

Water well drilling 140mm 152mm 165mm High air pressure DTH Drill BitsWater well drilling 140mm 152mm 165mm High air pressure DTH Drill Bits
